Automotive Relay Starting relay with low price
  • Automotive Relay Starting relay with low price

Automotive Relay Starting relay with low price

Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: SCH-4141-1A-12VDC

Installation Method: Through Hole

Circuit: Dpdt (2 Form C)

Output: Dc

Relay Type: Telecom

Supply Ability & Additional Information

Packaging: Carton

Transportation: Ocean,Land,Air,Express

Supply Ability: 100000PCS/DAY

Port: ningbo,SHANGHAI,SZ

Payment Type: L/C,T/T,D/P,Western Union,DS

Incoterm: FOB,CIP,EXW

Packaging & Delivery

  • Selling Units:

  • Piece/Pieces

  • Package Type:

  • Carton


                               Starting Relay

        Starting relay  is a common device in the automatic control system. It is generally used to connect and disconnect the circuit, issue control commands and reflect the status of the equipment by dropping the card, and remove the signal by returning the signal card after the equipment restores to normal. It is an important part of the automatic control and remote control circuit.



                                   Main Parameter

TYPE

SCH-4141-1A-12VDC

Outline Dimension(mm)

28.0×28.0×24.0
CONTACT DATA
Contact Form1A  1C
Max Switching Current340A
Max Switching Volatage
30VDC
Max Switching Power
560W
Rated Load(resistance)

40A   14VDC

COIL DATA
Nominal Voltage(12~24)VDC
Rated coil power1.8W   2.0W
GENERAL DATA
Insulation Resistance500MΩ
Between Open Contact500VAC/1Min
Between Coil And Contacts500VAC/1Min
Ambient Temperature-40℃~125℃
Action time/release time10ms/5ms

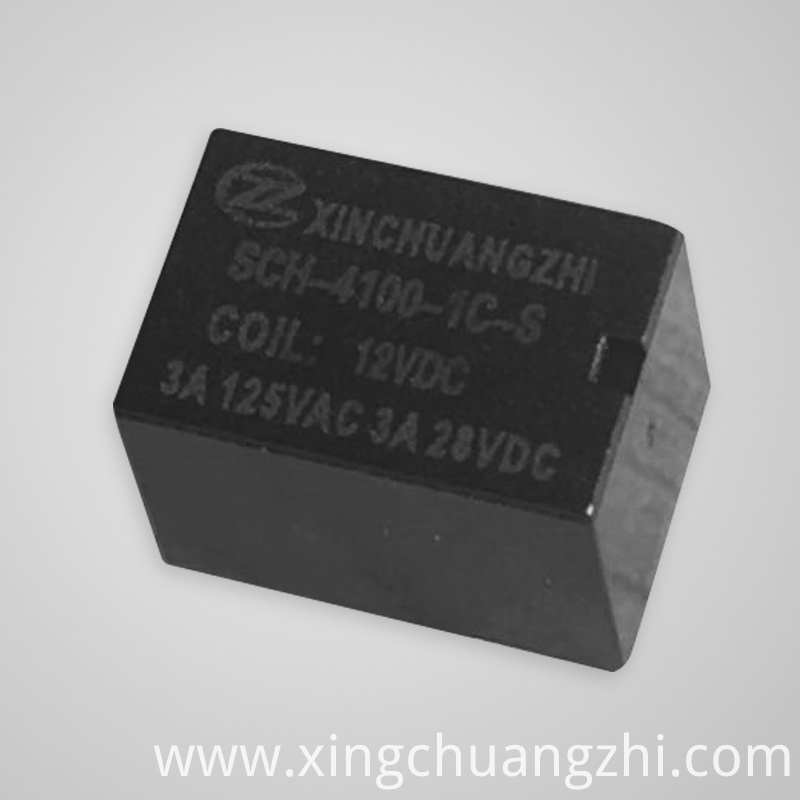

                                        Product Picture


Starting relay
