High Quality household appliances control relay

Get Latest Price

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SCH-152F-1C-12S

Installation Method: Through Hole

Circuit: Dpdt (2 Form C)

Output: Dc

Relay Type: Telecom

Supply Ability & Additional Information

Packaging: Carton

Transportation: Ocean,Land,Air,Express

Supply Ability: 100000PCS/DAY

Port: NINGBO,SHANGHAI,SZ

Payment Type: L/C,T/T,D/P,Western Union,DS

Incoterm: FOB,EXW,CIP

Packaging & Delivery

Selling Units:
Piece/Pieces

Package Type:
Carton

Waterproof Relay

Waterproof relay is a common device in the automatic control system. It is generally used to connect and disconnect the circuit, issue control commands and reflect the status of the equipment by dropping the card, and remove the signal by returning the signal card after the equipment restores to normal. It is an important part of the automatic control and remote control circuit.

Main Parameter

TYPE	SCH-152F-1C-12S
Outline Dimension(mm)	21.1×16.0×20.8
CONTACT DATA
Contact Form	1A 1B 1C
Max Switching Current3	16A
Max Switching Volatage	250VAC/30VDC
Max Switching Power	4700VA/210W
Rated Load(resistance)	16A 250VAC/30VDC
COIL DATA
Nominal Voltage	(5~48)VDC
Rated coil power	0.36W 0.45w
GENERAL DATA
Insulation Resistance	100MΩ
Between Open Contact	1000VAC/1Min
Between Coil And Contacts	2500VAC/1Min
Ambient Temperature	-40℃~105℃
Action time/release time	10ms/8ms

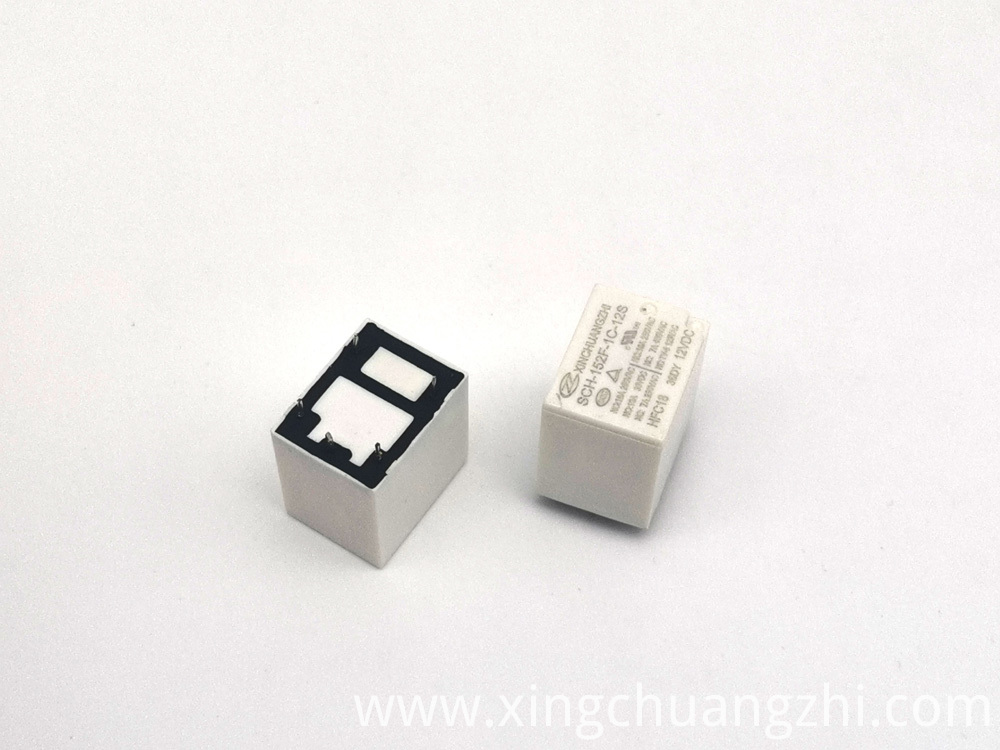

Product Picture

Fuel pump relay
