Air Conditioning time delay relay Air conditioning relay

Get Latest Price

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SCH-T93-1C-12S

Supply Ability & Additional Information

Packaging: Carton

Transportation: Ocean,Land,Air,Express

Supply Ability: 100000PCS/DAY

Port: NINGBO,SHANGHAI,SZ

Payment Type: L/C,T/T,D/P,Western Union,DS

Incoterm: FOB,EXW,CIP

Packaging & Delivery

Selling Units:
Piece/Pieces

Package Type:
Carton

Air conditioning Relay

Air Conditioning Relay is a common device in the automatic control system. It is generally used to connect and disconnect the circuit, issue control commands and reflect the status of the equipment by dropping the card, and remove the signal by returning the signal card after the equipment restores to normal. It is an important part of the automatic control and remote control circuit.

Main Parameter

TYPE	SCH-T93-1C-12S
Outline Dimension(mm)	32.2×27.4×20.0
CONTACT DATA
Contact Form	1A 1B 1C
Max Switching Current3	30A
Max Switching Volatage	240VAC/30VDC
Max Switching Power	7200VA/560W
Rated Load(resistance)	30A 250VAC/30VDC
COIL DATA
Nominal Voltage	(5~48)VDC
Rated coil power	0.9w
GENERAL DATA
Insulation Resistance	1000MΩ
Between Open Contact	1500VAC/1Min
Between Coil And Contacts	2500VAC/1Min
Ambient Temperature	-55℃~105℃
Action time/release time	15ms/10ms

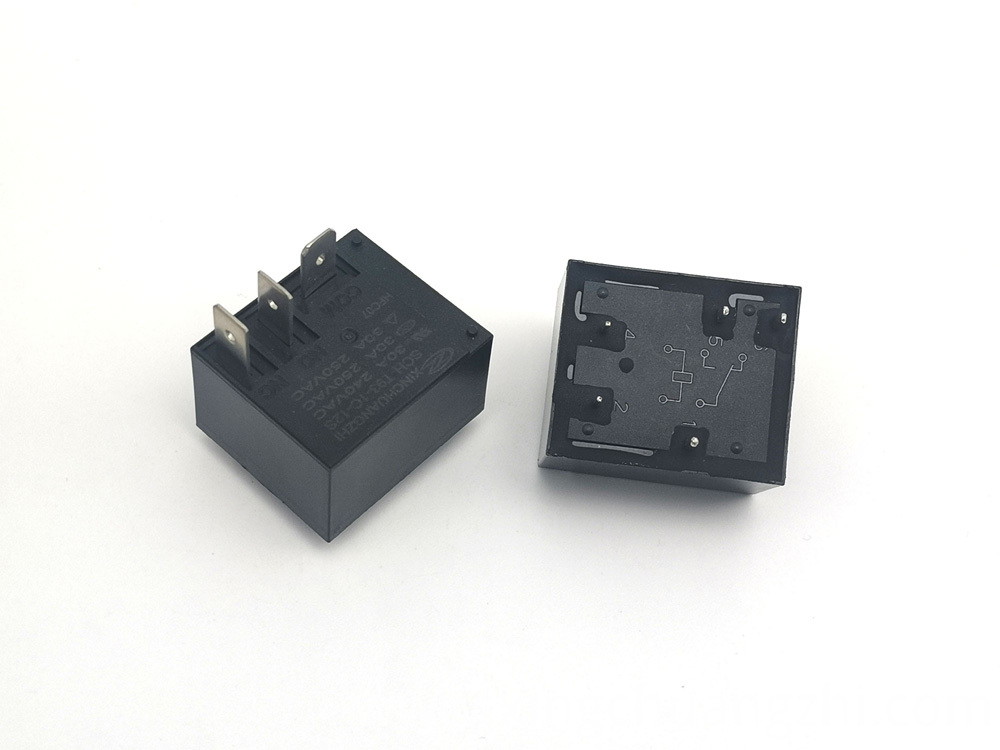

Product Picture

Electromagnetic Relay
