Integrative Motor Protection Communication Relay

Get Latest Price

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SCB-4078-2C-S

Installation Method: Through Hole

Circuit: Dpdt (2 Form C)

Output: Dc

Relay Type: Telecom

Supply Ability & Additional Information

Packaging: Carton

Transportation: Ocean,Land,Air,Express

Supply Ability: 100000PCS/DAY

Port: ningbo,SHANGHAI,SZ

Payment Type: T/T,L/C,Western Union,D/P,DS

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units: Piece/Pieces
Package Type: Carton

Communication Relay

Signal Relay is a common device in the automatic control system. It is generally used to connect and disconnect the circuit, issue control commands and reflect the status of the equipment by dropping the card, and remove the signal by returning the signal card after the equipment restores to normal. It is an important part of the automatic control and remote control circuit.

Main Parameter

TYPE	SCB-4078-2C-S
Outline Dimension(mm)	20.2×10.0×12.2
CONTACT DATA
Contact Form	2C
Max Switching Current	1A
Max Switching Volatage	240VAC/30VDC
Max Switching Power	125VA/60W
Rated Load(resistance)	1A 125VAC 1A 30VDC
COIL DATA
Nominal Voltage	(3~24)VDC
Rated coil power	0.2W 0.36W
GENERAL DATA
Insulation Resistance	100MΩ
Between Open Contact	500VAC/1Min
Between Coil And Contacts	1000VAC/1Min
Ambient Temperature	-40℃~75℃
Action time/release time	8ms/5ms

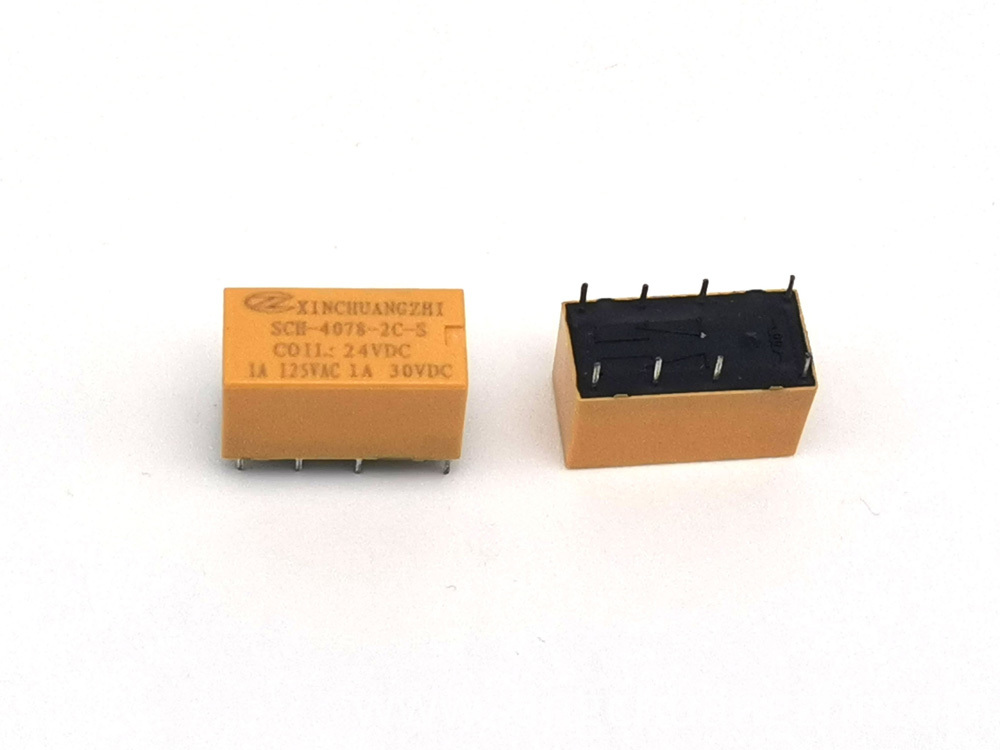

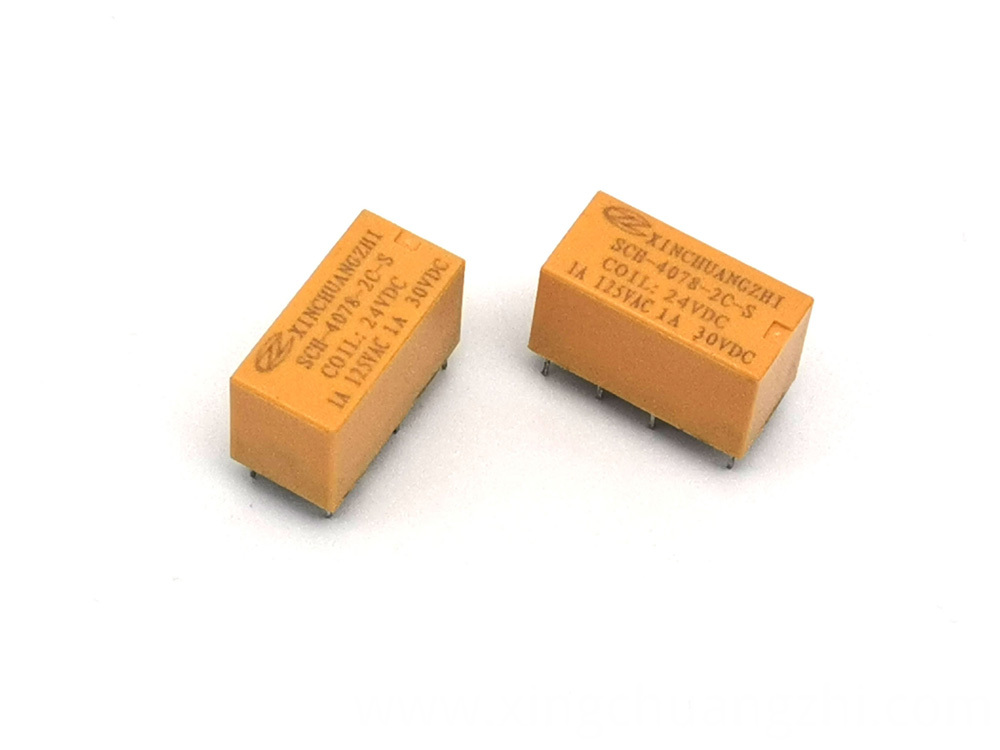

Product Picture
